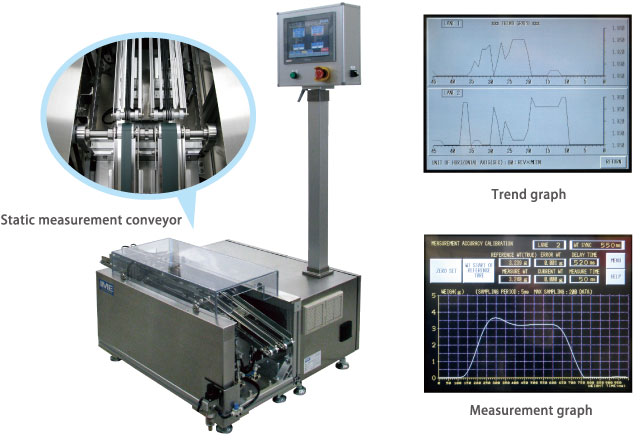

High Precision static measurement conveyor type 0.001g

Quality

  • Measurement precision less than ±5mg, sorting NG or PASS products.
    This system is a conveyor check weigher as well as static measurement.
  • This is the inovation system.
    High precision measurement is realized with a type of conveyance.
  • We have adopted the load cell proven built-in type of packaging machine for pharmaceutical.
    It is bearable against the vibration.
  • You can choose a force balance if the lane pitch is wide.
    The measurement data can be sent to a laptop PC by wireless communication unit that reaches 100 meters.
  • Printer is not required because the production data collects on the SD card.
  • It is compatible with feedback control for filling.

High Precision static measurement conveyor type 0.001g

▲PAGE TOP

High precision static measurement conveyor type CWS416BTH  Specifications

ModelBTH01-FX20BTH02-FX20 〜 BTH12-FX20
Number of lanes 1  Lane 2 〜 12 Lanes
Capacity 0.1 〜 20 g
Maximum Speed 50 rpm
Maximum precision(3δ) ± 0.005 g
Readability 0.001 g
Product sizeWidth Unrestricted
Length
Height
Ejection Special design is possible by product Up and down type individual sorting
Power source AC100・115・200・220・230・240±10% Single phase 50/60Hz
Power consumption

Less than 200W
(Maximum 1500W during printing)

Less than 500W
(Maximum 1500W during printing)

Weight Less than 150kg By the number of lanes
Environment

0〜40℃(Not to exceed 3℃/h to maintain precision), relative humidity 30% to 85%, no dew condensation

Control box Painted/Stainless steel
Degrees of protection IP 30
Options Waterproof(IP65), Printer, Feedback system, Data collection system, Various validation support
