High Precision Static Measurement type Multi lane Check Weigher and Feedback control system 0.001g

Quality

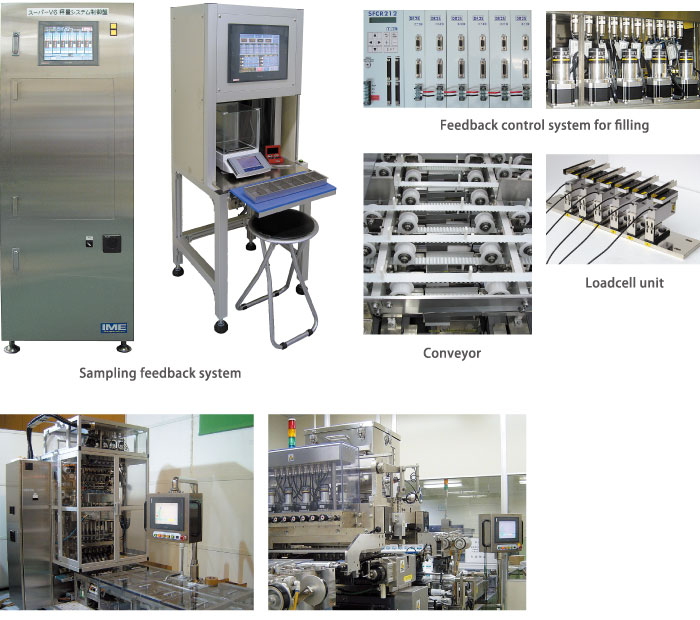

  • Each sochet products is measured with high precision  by a loadcell unit built-in the packaging machine.
    The measurement data are stored in a laptop PC.
  • Maximum precision　±0.003g  Actual precision ±0.010g.
    This system is available to measure as accurate as the electronic balance at high speed.
  • The filling amount is feedback-controlled by measurement value.
  • In case of the connected sachets are put transversely to flow direction,it is needed individual filling control like the hand-operated or automatic sampling feedback system.
    Our system is able to individual feedback control correctly.
    The sampling data can be stored in a laptop PC too.
  • Minimum lane pitch, 30mm.
    You can choose a force balance if the lane pitch is wide.

High Precision Static Measurement type Multi lane Check Weigher and Feedback control system 0.001g

▲PAGE TOP

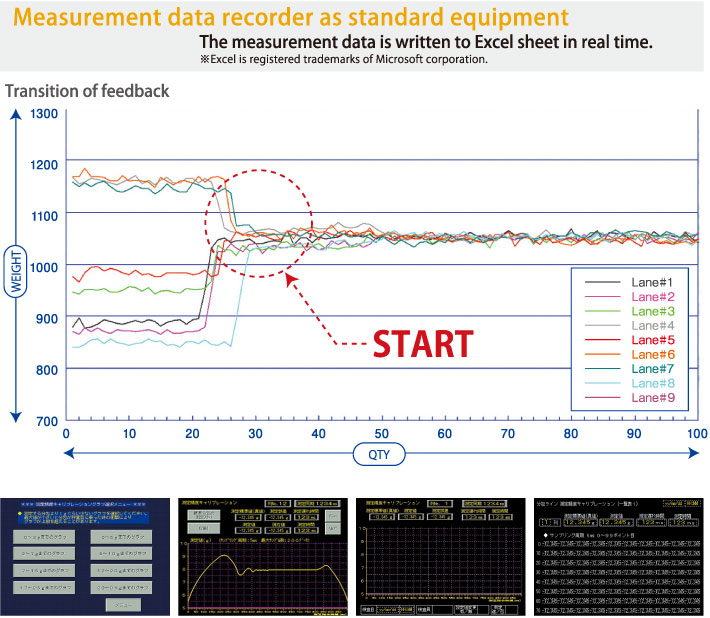

Feedback control system

Feedback control system

It is available to review the measurement precision.

  • ①Please enter product's weight measured by electric balance.
  • ②After measurement, it will displays the graph and the measurement error.
  • ③The printing data helps for quality control.

▲PAGE TOP

Static measurement CWS416H & CWS416C  Specifications

ModelCWS416H-01 〜 CWS416H-12CWS416C-01 〜 CWS416C-12
Number of lanes 1 〜 12 Lanes 1 〜 12 Lanes
Capacity 0.1 〜 30 g 1 〜 50 g
Maximum Speed 100  rpm 100  rpm
Maximum precision(3δ) ± 0.003 g ± 0.02 g
Readability 0.001 g 0.01 g
Product sizeWidth Unrestricted
Length
Height
Power source AC100・115・200・220・230・240±10％　Single phase 50/60Hz
Power consumption Less than 200W  ( Maximum 1500W during printing)
Weight Less than 50kg
Environment

0〜40℃(Not to exceed 3℃/h to maintain precision), relative humidity 30% to 85%, no dew condensation
Control box Painted/Stainless steel
Degrees of protection IP 30
Options Waterproof (IP65),Printer,Feedback system, Data collection system, Various validation support
